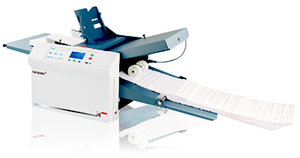

The PF-80 Automatic Document Folder gives you the simplicity and versatility to complete a wide variety of fold jobs in just minutes, whether you’re a business, church, school or print shop.
Even untrained operators will quickly master the PF-80. Its user-friendly control panel with large 2.8" LCD backlit display lets you load up to 500 sheets in the hopper, select a fold type, press start and walk away. Easy adjustment can be made to process a variety of precision folds including single, letter, z-fold, gate, fold-out, and double parallel.
- Process quickly at 20,100/hour
- Input and Output feed balanced — 500 sheets and 500 finished pieces
- Programmable jobs
- Automatic fold settings
- Process variable page sets such as invoices or statements
- Cross folding available for newsletters or large format documents
- Wide variety of folds
- Process various paper weights
- Large LCD Intuitive control panel
- Auto Batch to fold in batches with timed delays
- Counter for security
- Batch counter to stop at pre-set number
SPECIFICATIONS |
Hopper Capacity |
Up to 500 Sheets 20# |
Fixed Speed |
Up to 20,100 pieces per hour (based on 11" z-fold) |
Paper Size |
|
Min |
Max |
|
Width |
3.5" |
12.25" |
|
Length |
5" |
18" |
Monthly Volume |
150,000 pieces |
Dimensions |
Closed: 33"L x 20"W x 19"H
Fully Extended: 60"L x 20"W x 19"H |
Weight |
67 lbs |
Power Requirements |
Voltage 120 (+6-10%)
Frequency 50/60 Hz |
|
